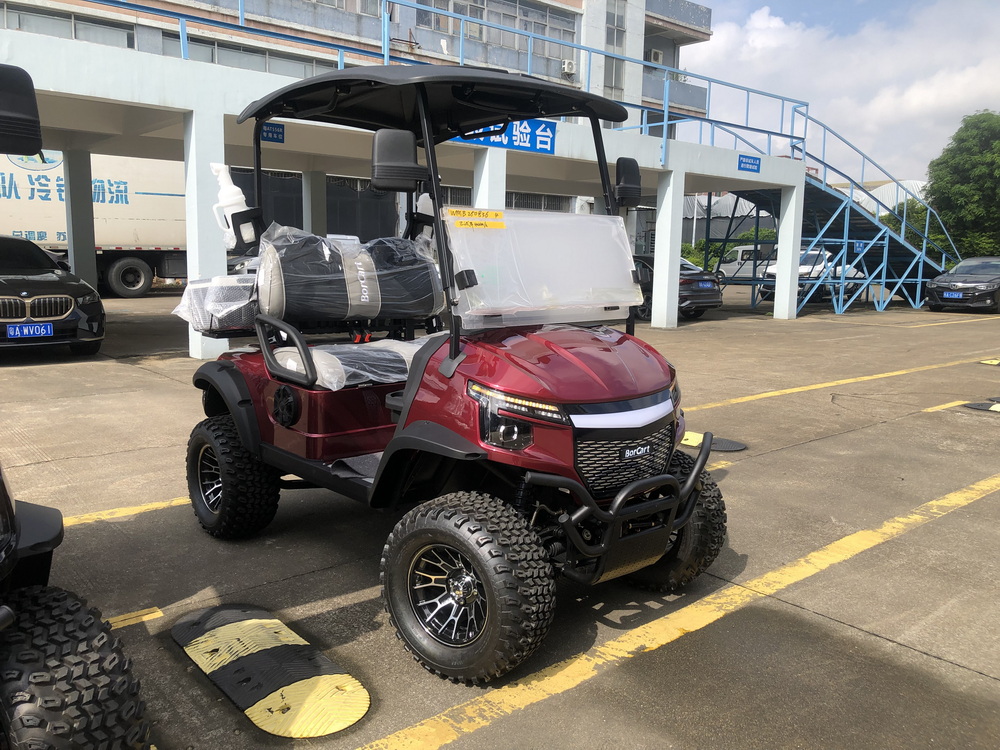

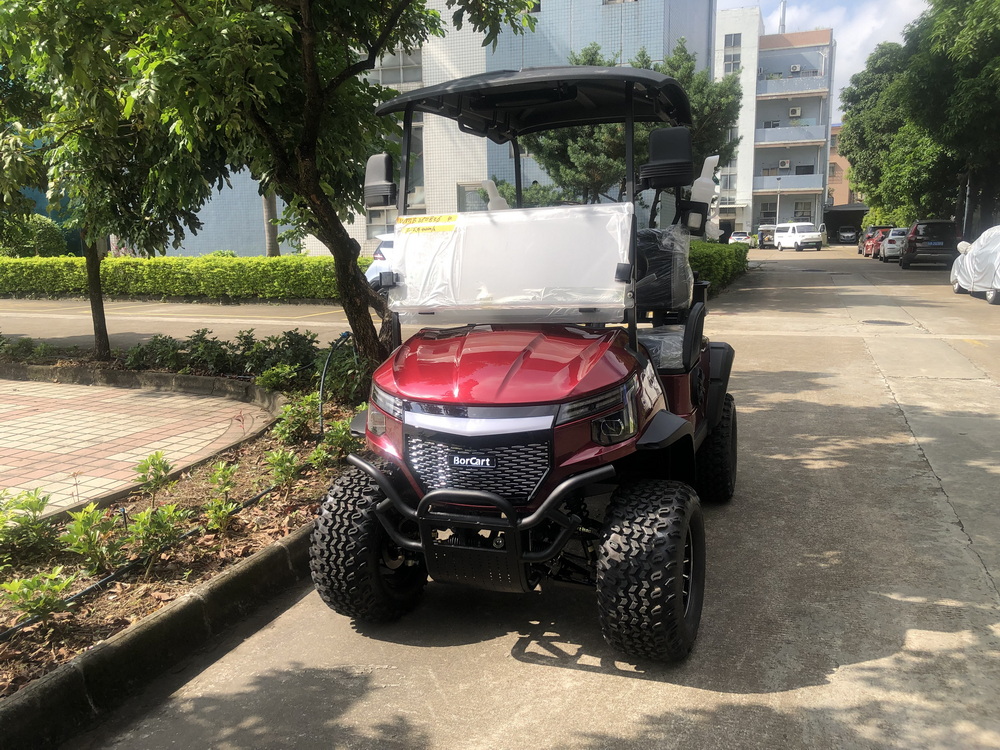

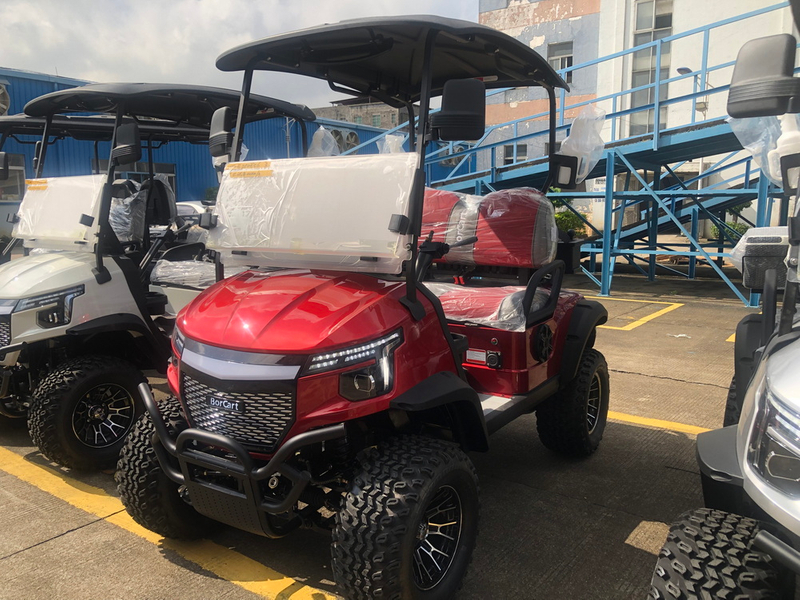

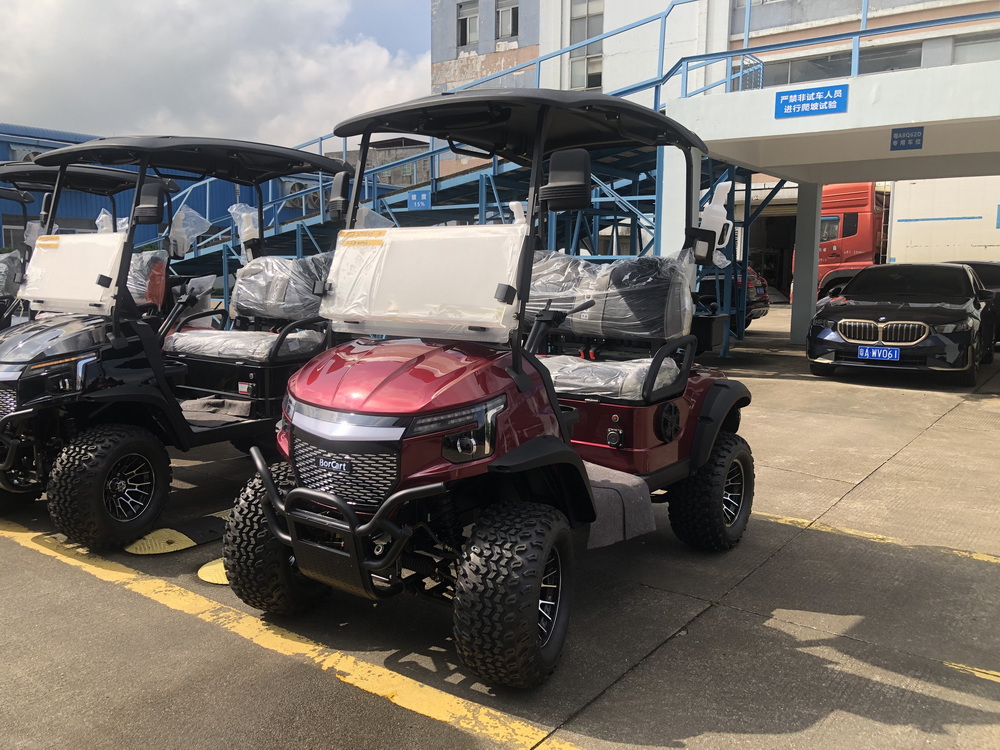

12 inch 5000W Motor 4-wheel Golf Electric Scooter
This is our Z-L2 Electric Golf Carts product.
Item | Z-L2 | |
Power(optional) | 48V5KW(Lead acid) | 72V5KW(Lithium battery) |
Chassis frame | High strength sheet metal rectangular frame (electrophoresis + highlight) | |
Outline dimension | 2520*1340*2050mm | |
Front / rear tread | Front1005mm/Rear1075mm | |
Wheel Axle distance | 1680mm | |
Ground clearance | 170mm | |
Minimum turning radius | 3.2m | |
Net weight | 550kg | |
Maximum driving speed | 50km/h(Can be adjusted according to customer needs) | |
Climbing capacity | 25% | |
Standing slope performance | 25% | |
Endurance | 80-100km (flat road) | |
Braking distance | <3.5m | |
Motor voltage(Alternating current) | 48V5KW | 72V5KW |
Motor brand | KDS Motor | |
Electric control brand | Borcart 48V350A | Borcart 72V450A |
Battery | Shengyang lead acid without maintenance 6*8V150AH | Guosheng 72v120ah lithium iron phosphate |
DC converter | High power non isolated DC-DC 48V/12V-300W | High power non isolated DC-DC 72V/12V-300W |
Battery charger | Preston intelligent vehicle charger 48V/25A,charging time < 8 hours (discharge rate 80%) | Standard lithium iron phosphate charger |
Steering system | Bidirectional rack and pinion steering system with automatic clearance compensation function | |
Braking system | Zero crossing rear axle: four wheel hydraulic pressure brake, four wheel disc brake + electronic brake parking | |
Front suspension | Double swing arm and independent front suspension + coil spring + barrel hydraulic pressure shock absorber. | |
Rear suspension | Integral rear axle, speed ratio 16:1,coil spring damping + barrel hydraulic pressure damping + rear stabilizer bar | |
Tire specification | DOT certification;Road tire 205/50-10(tire diameter 520mm)10 inch aluminum wheel hub | |
Ceiling | Frosted black square pipe frame + PP injection molding ceiling | |
Floor | Aluminum alloy profile anti-skid floor,high strength structure,corrosion resistance and aging resistance | |
Body of car | The front cover,seat barrel,body and rear tail cover are injection molded for automobiles;Frosted black square pipe ceiling column; | |
Seat | Integral foam forming cushion;High grade imported leather (optional) color separation;Reverse row seat can be turned over,including storage box | |
Instrument panel | Injection molding instrument panel, electric lock switch, double arm combination switch, gear switch, electronic hand brake switch, water cup holder; Dual USB data interface, 12V power supply, USB + type-C fast charging. The LCD electric vehicle combination instrument (including fault diagnosis information display) platform is an embedded multimedia touch LCD screen. Optional reverse image. | |
Rearview mirror | One manually adjustable and foldable exterior rearview mirror on the left and right | |
Lights and warning signals | Led front combination lamp (low beam lamp,high beam lamp,turn signal lamp,daytime running lamp,position lamp) | |
Front windshield and wiper | DOT certified acrylic plexiglass;Optional tempered glass + wiper | |
|
Function
1.HASDA IP66 waterproof advanced multimedia combination LCD screen with vehicle status information.
2.HASDA IP66 Full range hi fi speaker H058.
3.First class seats (overall foam seat cushion+solid high-grade imported leather).
4.High strength aluminum alloy oxidation anti-skid floor, corrosion resistance and aging resistance.
|
Suspension and braking system
1. Front suspension: double arm independent front suspension+spiral spring+cylindrical hydraulic shock absorption.
2. Rear suspension: integral rear axle,speed ratio 16:1,coil spring damping+cylindrical hydraulic damping+rear stabilizer bar.
3. Brake system:zero crossing rear axle:four-wheel hydraulic brake,four-wheel disc brake+electronic brake parking.
4. Steering system:two-way rack and pinion steering system,automatic clearance compensation function.
5. Frame: high-strength sheet metal trapezoidal frame (electrophoresis+highlight).
|
CART DETAILS
|
CUSTOMER REAL SHOW
|
EXHIBITION&CUSTOMERS VISITING
|
Related Products
These are our Latest mordern Golf Carts for 2 seats,4 seats and 6 seats below:
|
Company Information
|
OUR WORKSHOP
|
Packaging & Shipping
|
Our Services
We can be able to design and produce Top-Quality Mordern,fashion,attractive Golf Carts because of strong R&D team with more than 20 engineers and more than 300 sfaffs.Also,we have a outstanding service after sales to assure our cooperation successfully.The quotation service base on EXW,FOB,CFR and DDP are available for you.
|
FAQ
Q1.Why choose us?
A:Because we have 22 years experience in Golf Carts Industry,with more than 20 engineers and 200 staff,richful production,Top and modern technology,reliable service after sales,our Golf Carts are popular,as they are fashionable,smart,practical and economical.
Q2.What is your terms of payment?
A:T/T 30% as deposit,We'll show your order process by the photos and vedio.
Q3.What is your terms of delivery?
A:EXW,FOB,CFR ,CIF,DDP.
Q4.How about your delivery time?
A:Usually,it will take 15 to 30 days after receiving your prepayment.The specific delivery time depends on the items and the quantity of your order.
Q5.Can you produce according to the samples and accept the OEM,ODM order?
A:Of course,we can produce as per your samples or technical drawings.We accept OEM,ODM order.
Q6.Do you test your Golf Cart before delivery?
A:Sure,we have a inspect standard and 100% test before delivery.
Q7:How about the warranty?
A:some parts with more than 4 year warranty,also,we can provide accessory in the service after sales.
