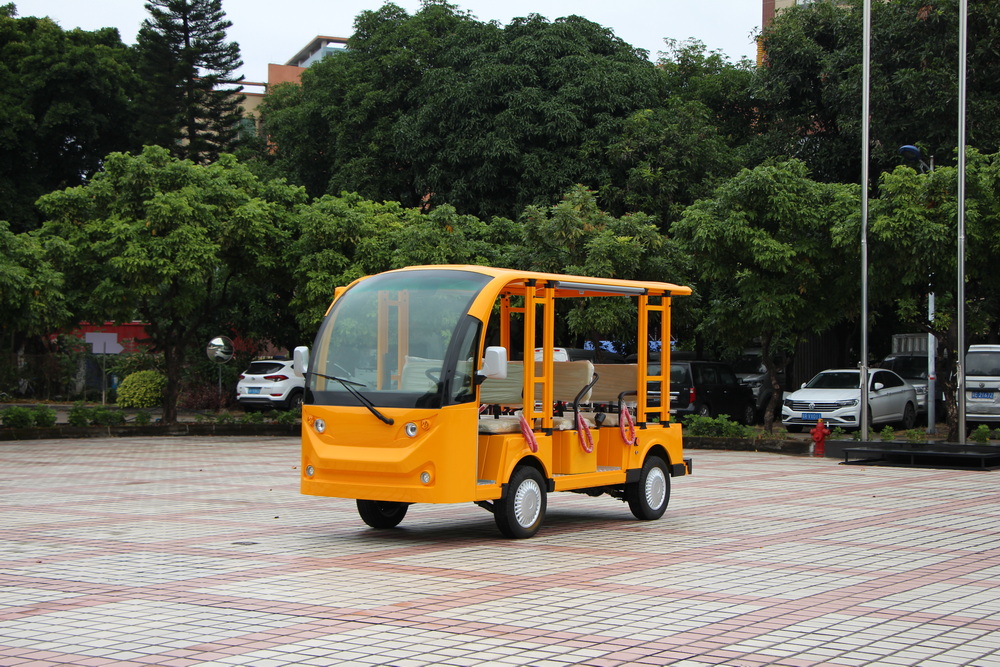

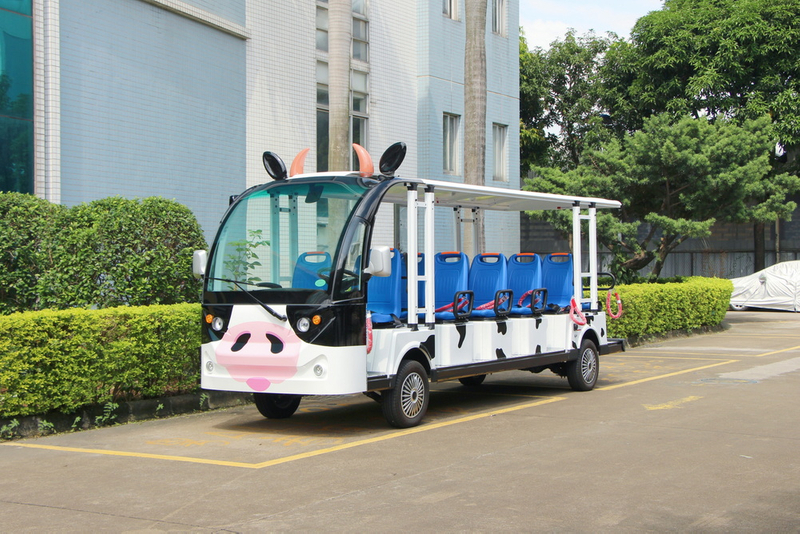

11 Seats 8 Seats Multi-purpose Electric Cart Sightseeing Mini Bus
Item | 8A+3 | |
Power(optional) | 48V5KW(Lead acid) | 72V5KW(Lithium battery) |
Chassis frame | High strength sheet metal rectangular frame (electrophoresis + highlight) | |
Outline dimension | 4235x1510x2120mm | |
Front / rear tread | Front 1300 mm/Rear 1300 mm | |
Wheel Axle distance | 2020mm | |
Ground clearance | 140mm | |
Minimum turning radius | 4.5m | |
Net weight | 1040kg | |
Maximum driving speed | 30km/h(Can be adjusted according to customer needs) | |
Climbing capacity | 15% | |
Standing slope performance | 15% | |
Endurance | 60km (flat road) | |
Braking distance | <6m | |
Motor voltage(Alternating current) | 48V5KW | 72V5KW |
Motor brand | China brand | |
Electric control brand | Borcart 48V350A | Borcart 72V450A |
Battery | Shengyang lead acid without maintenance 6*8V150AH | Guosheng 72v120ah lithium iron phosphate |
DC converter | High power non isolated DC-DC 48V/12V-300W | High power non isolated DC-DC 72V/12V-300W |
Battery charger | Preston intelligent vehicle charger 48V/25A,charging time < 8 hours (discharge rate 80%) | Standard lithium iron phosphate charger |
Steering system | Double-pinion gear rack steering + electric speed-dependent steering assist system (with active correction) | |
Braking system | Front ventilated disc rear drum hydraulic dual-circuit braking + handbrake parking, with vacuum-assisted braking system | |
Front suspension | Front axle McPherson independent suspension, with coil springs and tube-type hydraulic shock absorbers | |
Rear suspension | Integral rear axle, coil springs + tubular hydraulic shock absorber | |
Tire specification | Vacuum equatorial tire 195/70R15, steel wheel rim with wheel rim cover | |
Ceiling | Enhanced composite material skin + aluminum alloy frame + sheet metal front windshield; featuring light weight, anti-aging properties, and resistance to fading. | |
Floor | Aluminum alloy patterned floor, non-corrosive, sturdy, durable and beautiful | |
Seat | PU automotive-specific seats, in line with ergonomic principles | |
Rearview mirror | Adjustable,foldable rear view mirror | |
Lights and warning signals | LED high/low beam headlights, turn signals, rear combination taillights, horn, reversing buzzer | |
Front windshield | Automotive-grade laminated glass+With glass washer and dual swing-arm wipers | |
|
Suspension and braking system
1. Front suspension: double arm independent front suspension+spiral spring+cylindrical hydraulic shock absorption.
2. Rear suspension: integral rear axle,speed ratio 16:1,coil spring damping+cylindrical hydraulic damping+rear stabilizer bar.
3. Brake system:zero crossing rear axle:four-wheel hydraulic brake,four-wheel disc brake+electronic brake parking.
4. Steering system:two-way rack and pinion steering system,automatic clearance compensation function.
5. Frame: high-strength sheet metal trapezoidal frame (electrophoresis+highlight).
|

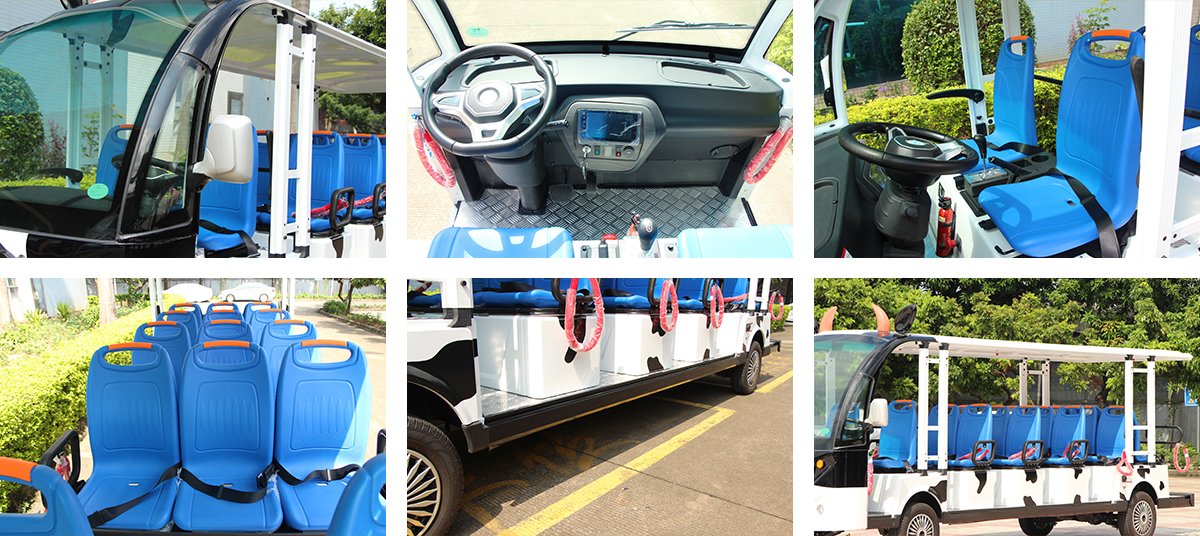

CART DETAILS
|
CUSTOMER REAL SHOW
|
EXHIBITION&CUSTOMERS VISITING
|

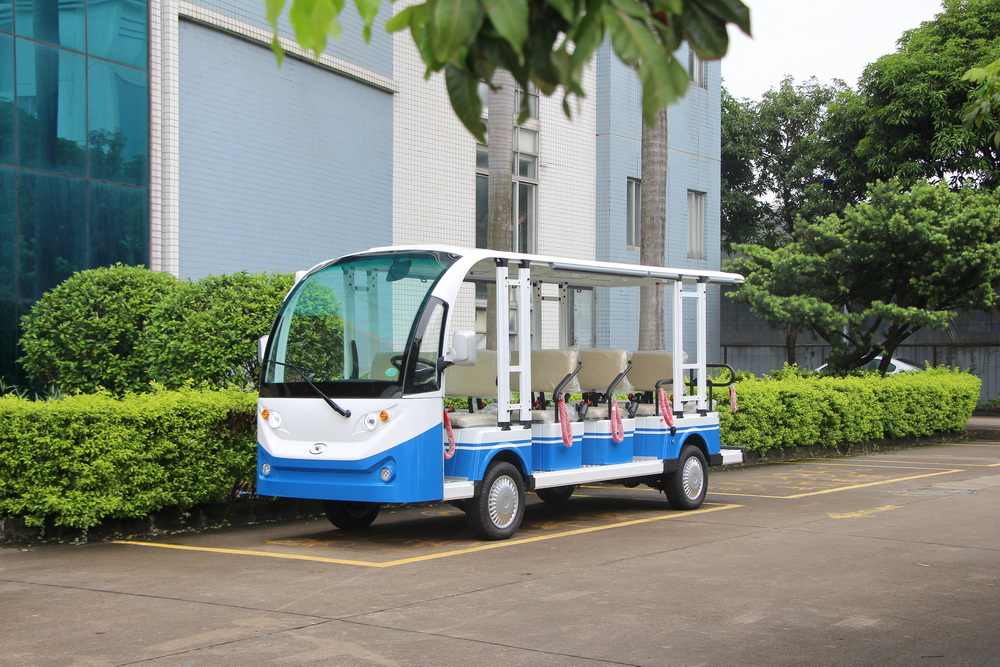

Related Products
These are our Latest mordern Golf Carts for 2 seats,4 seats and 6 seats below:
|
Company Information
|
OUR WORKSHOP
|
Packaging & Shipping
|
Our Services
We can be able to design and produce Top-Quality Mordern,fashion,attractive Golf Carts because of strong R&D team with more than 20 engineers and more than 300 sfaffs.Also,we have a outstanding service after sales to assure our cooperation successfully.The quotation service base on EXW,FOB,CFR and DDP are available for you.
|
FAQ
Q1.Why choose us?
A:Because we have 22 years experience in Golf Carts Industry,with more than 20 engineers and 200 staff,richful production,Top and modern technology,reliable service after sales,our Golf Carts are popular,as they are fashionable,smart,practical and economical.
Q2.What is your terms of payment?
A:T/T 30% as deposit,We'll show your order process by the photos and vedio.
Q3.What is your terms of delivery?
A:EXW,FOB,CFR ,CIF,DDP.
Q4.How about your delivery time?
A:Usually,it will take 15 to 30 days after receiving your prepayment.The specific delivery time depends on the items and the quantity of your order.
Q5.Can you produce according to the samples and accept the OEM,ODM order?
A:Of course,we can produce as per your samples or technical drawings.We accept OEM,ODM order.
Q6.Do you test your Golf Cart before delivery?
A:Sure,we have a inspect standard and 100% test before delivery.
Q7:How about the warranty?
A:some parts with more than 4 year warranty,also,we can provide accessory in the service after sales.
Q8:How about the color?
A:The car can be painted any color as client request,usually with 2 colors.
Q9:How do you keep our business long-term and good relationship?
A:First,our Golf Carts can attract you greatly,as our Golf Carts are fashion,luxury,smart and economical;Second:We keep Top quality and competitive price to make our customers benefit.
