| Color: | |
|---|---|
| Quantity: | |
Item | 6R+utility | |
Power(optional) | 48V5KW(Lead acid) | 72V5KW(Lithium battery) |
Chassis frame | High strength sheet metal rectangular frame (electrophoresis + highlight) | |
Outline dimension | 3780×1185×1870mm | |
Front / rear tread | Front850 mm/Rear970 mm | |
Wheel Axle distance | 3100mm | |
Ground clearance | 110mm | |
Minimum turning radius | 4.8m | |
Net weight | 686kg | |
Maximum driving speed | 25km/h(Can be adjusted according to customer needs) | |
Climbing capacity | 20% | |
Standing slope performance | 20% | |
Endurance | 80km (flat road) | |
Braking distance | <6m | |
Motor voltage(Alternating current) | 48V5KW | 72V5KW |
Motor brand | China brand | |
Electric control brand | Borcart 48V350A | Borcart 72V450A |
Battery | Shengyang lead acid without maintenance 6*8V150AH | Guosheng 72v120ah lithium iron phosphate |
DC converter | High power non isolated DC-DC 48V/12V-300W | High power non isolated DC-DC 72V/12V-300W |
Battery charger | Preston intelligent vehicle charger 48V/25A,charging time < 8 hours (discharge rate 80%) | Standard lithium iron phosphate charger |
Steering system | Single-stage rack and pinion + tie rod steering system | |
Braking system | Mechanical drum brake, with automatic parking release function and automatic clearance compensation function. | |
Front suspension | Multi-leaf spring and hydraulic shock absorption system | |
Rear suspension | Multi-leaf spring and hydraulic shock absorption system. | |
Tire specification | DOT certificated road tire 205/50-10inch（4 Ply Rated） | |
Ceiling | High-strength ABS vacuum forming (white) | |
Floor | Leather-textured rubber flooring | |
Seat | High-density sponge seat cushion + PVC leather | |
Rearview mirror | Adjustable,foldable rear view mirror | |
Lights and warning signals | front combined lamps --dipped lights,high beams,turn lights,day time running light,position lamp/Rear front combined lamps(brake light,position lamp,turn lights) , back up alarm buzzer | |
Front windshield | DOT certified Acrylic straight plate glass | |
|
Suspension and braking system
1. Front suspension: double arm independent front suspension+spiral spring+cylindrical hydraulic shock absorption.
2. Rear suspension: integral rear axle,speed ratio 16:1,coil spring damping+cylindrical hydraulic damping+rear stabilizer bar.
3. Brake system:zero crossing rear axle:four-wheel hydraulic brake,four-wheel disc brake+electronic brake parking.
4. Steering system:two-way rack and pinion steering system,automatic clearance compensation function.
5. Frame: high-strength sheet metal trapezoidal frame (electrophoresis+highlight).
|

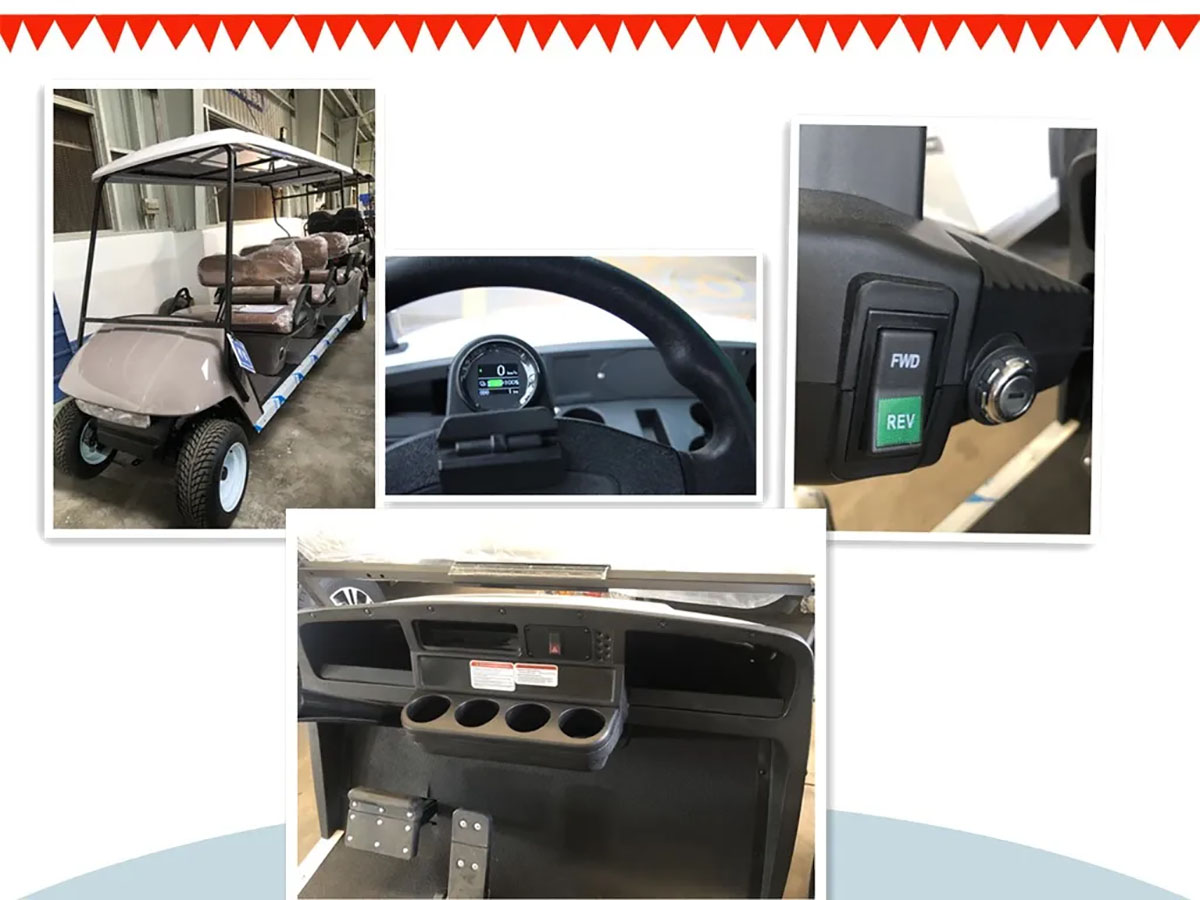

CART DETAILS
|

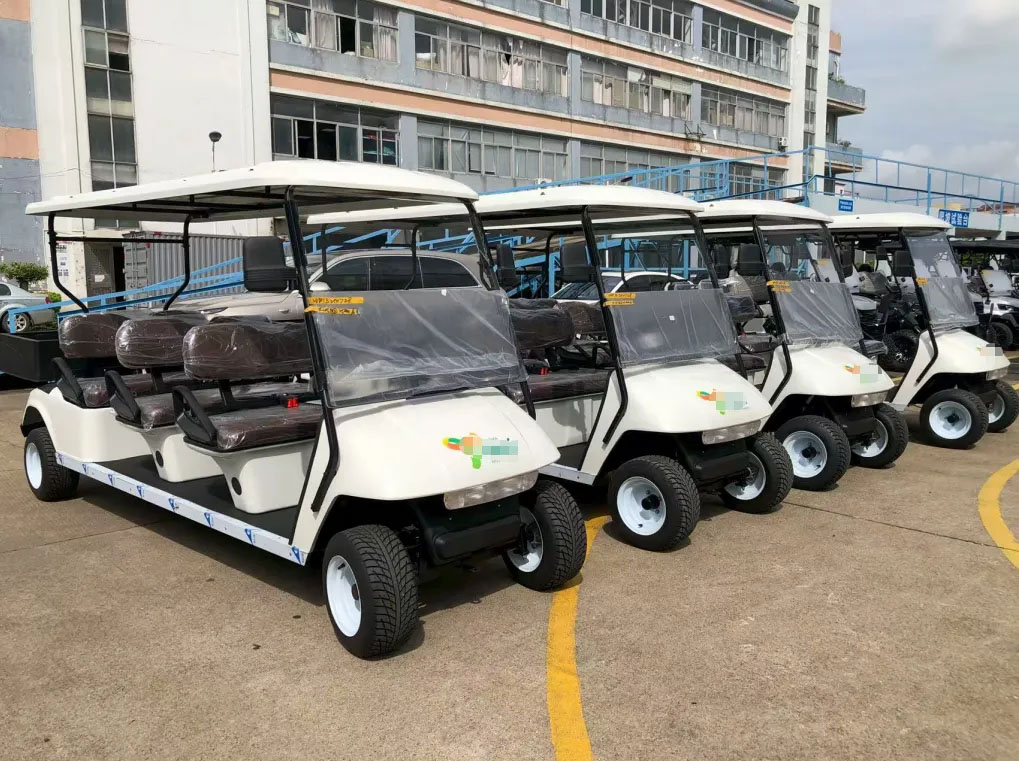

CUSTOMER REAL SHOW
|
